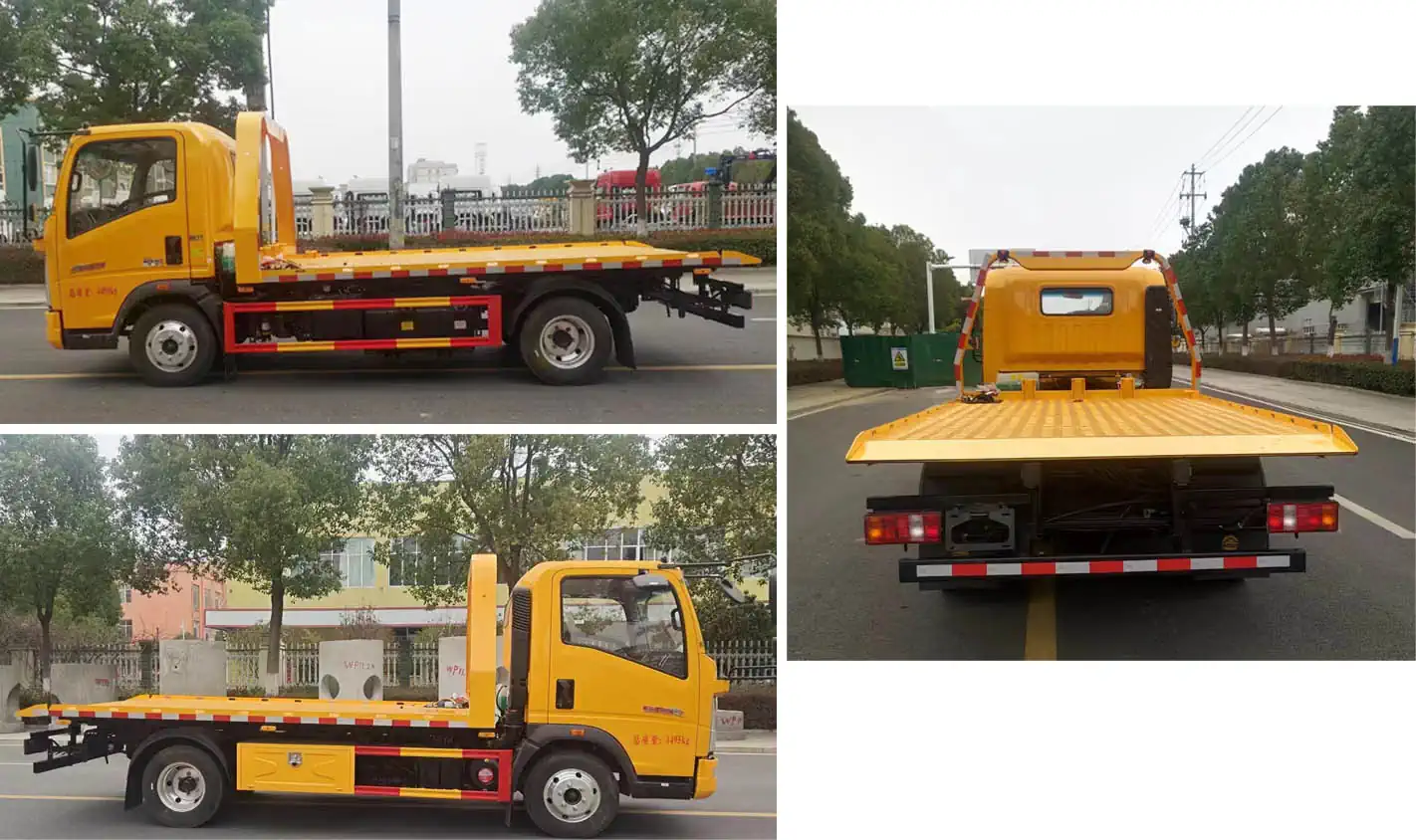

5Ton HOWO Heavy-Duty Flatbed Wrecker Truck with 3600 Wheelbase
Sinotruk HOWO heavy-duty flatbed tow truck, 5/7-ton. Weichai 150hp, 3,600mm wheelbase, reinforced chassis. 5.6×2.3m platform, 5mm deck, hydraulic flip tail. Tow capacity 7-8 tons.
Category:
Light duty tow truck
Inquiry
Vehicle Overview
Sinotruk HOWO heavy-duty flatbed tow truck, available in 5-ton and 7-ton rated capacity configurations. Both variants utilize a reinforced chassis with Weichai powertrain and extended-service components for high-intensity recovery operations.
Model Number: SCS5040TQZZ6
Chassis Parameters
- Wheelbase: 3,600 mm
- Cab: 1,880 mm Hanjiang, four-point airbag suspension

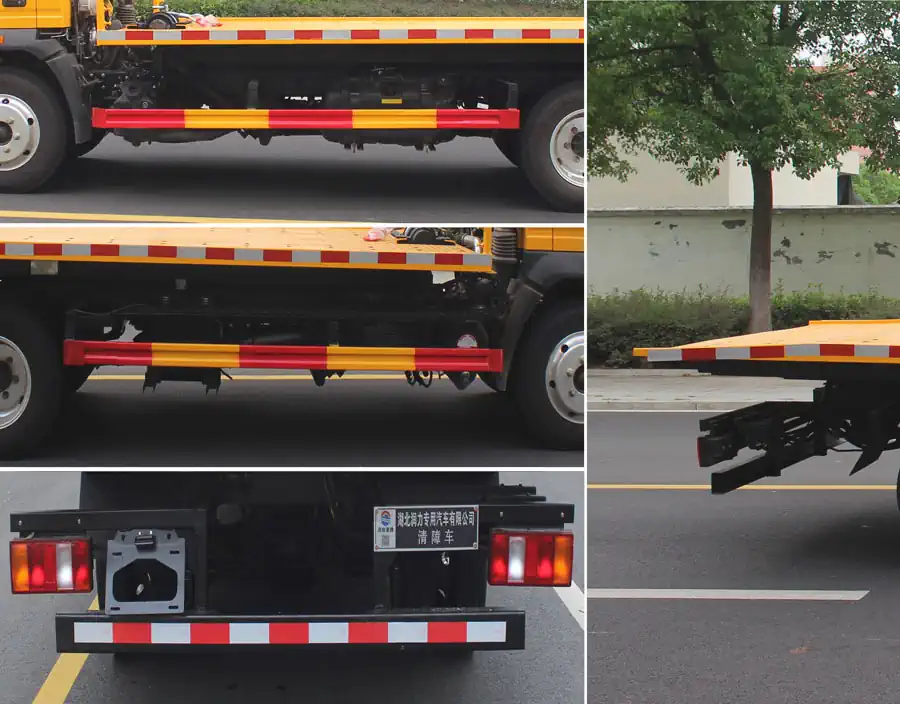

- Frame: Factory double-layer reinforced main frame

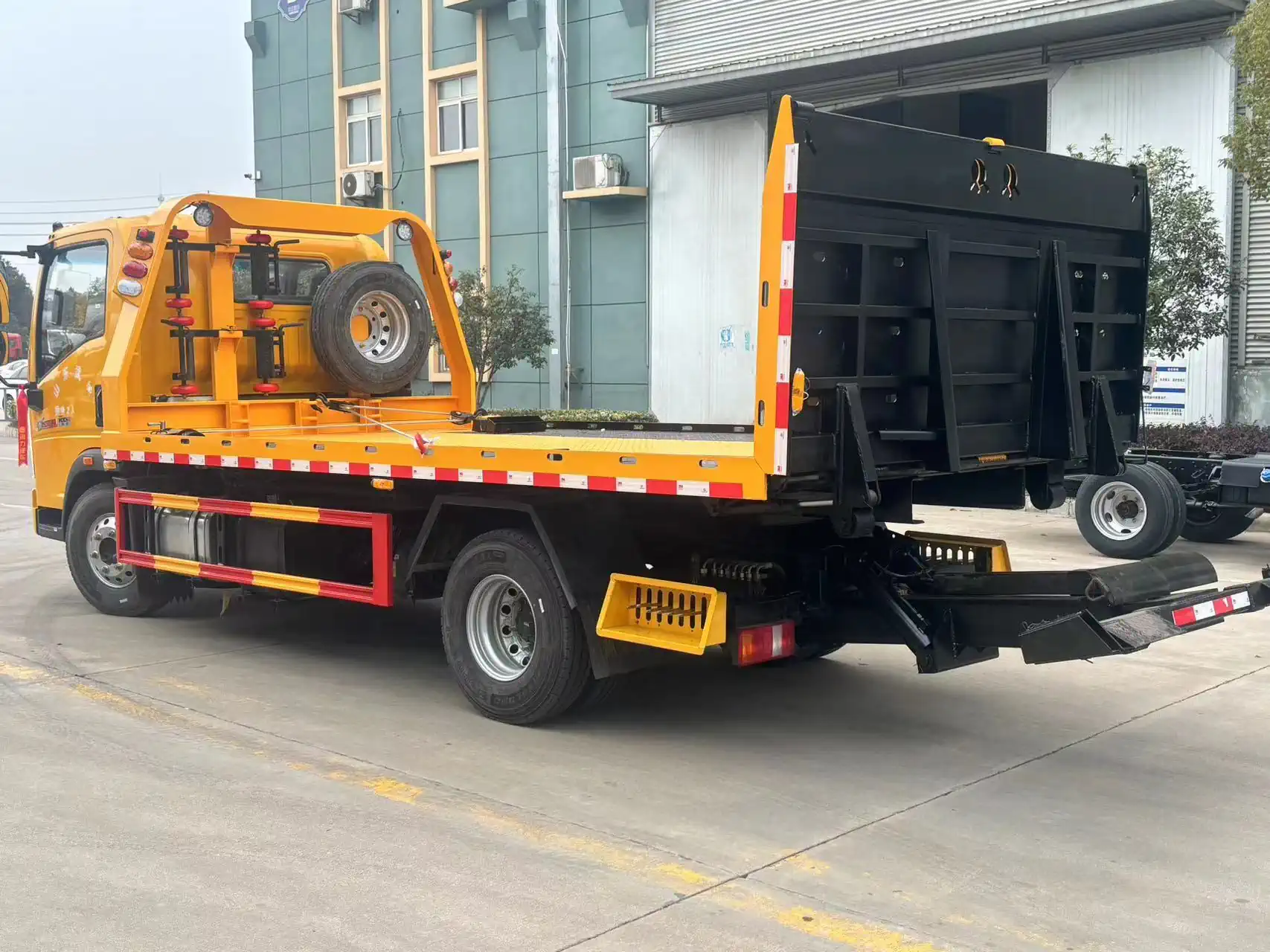

- Engine: Weichai diesel, 150–151 hp

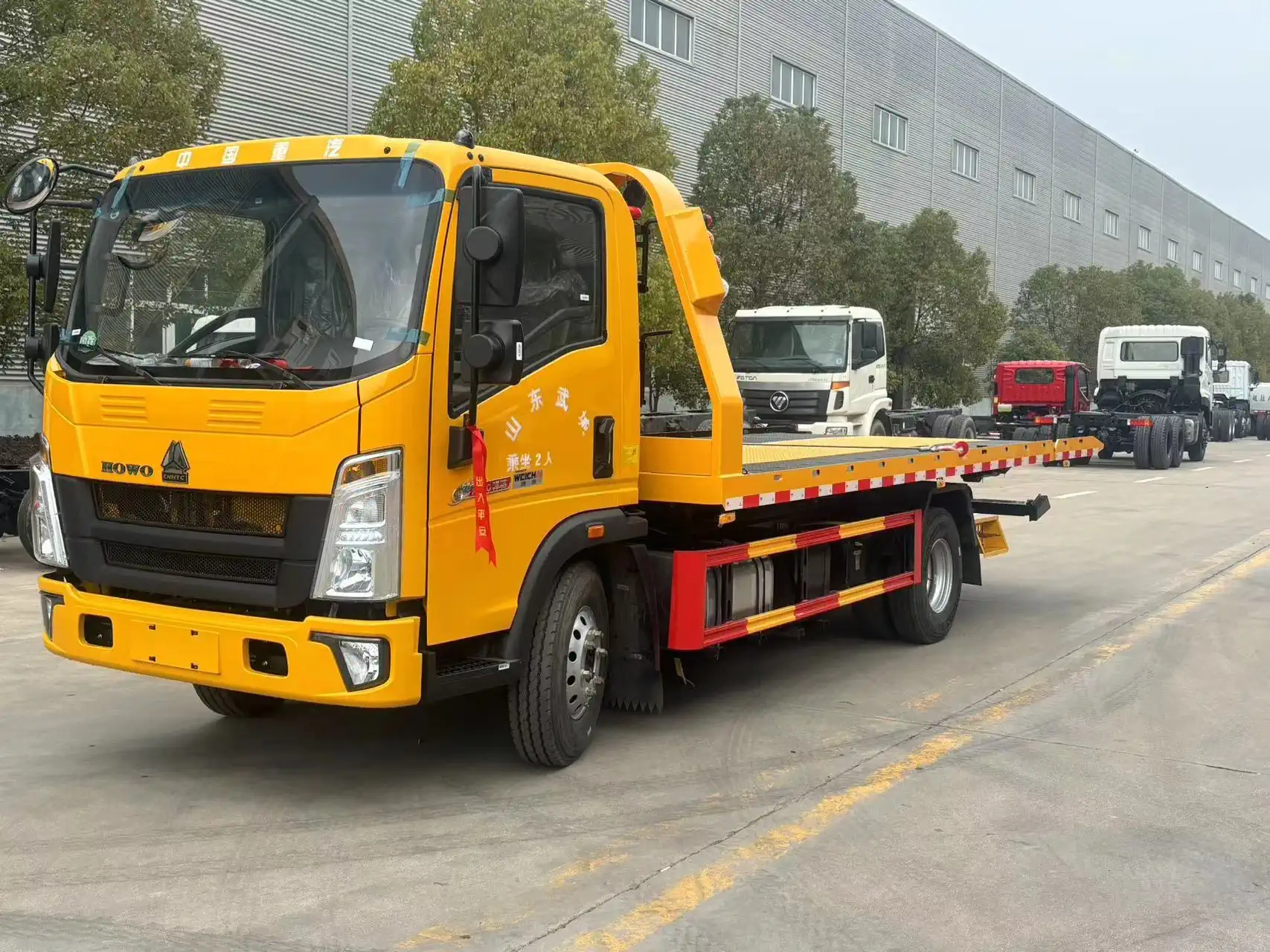

- Transmission: Wanliyang 6-speed manual

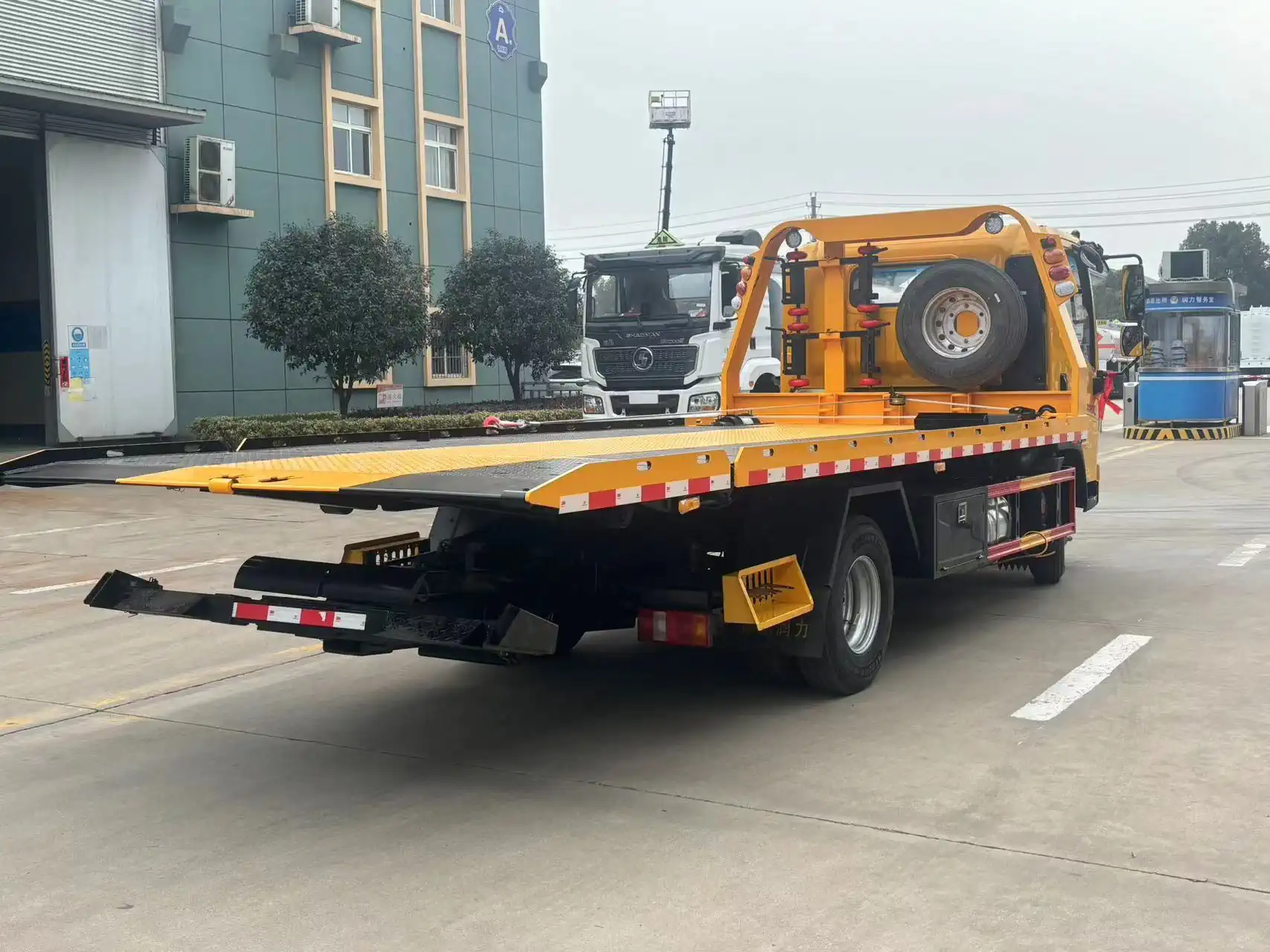

- Rear Axle: 6-ton capacity, 120,000 km extended oil-change interval

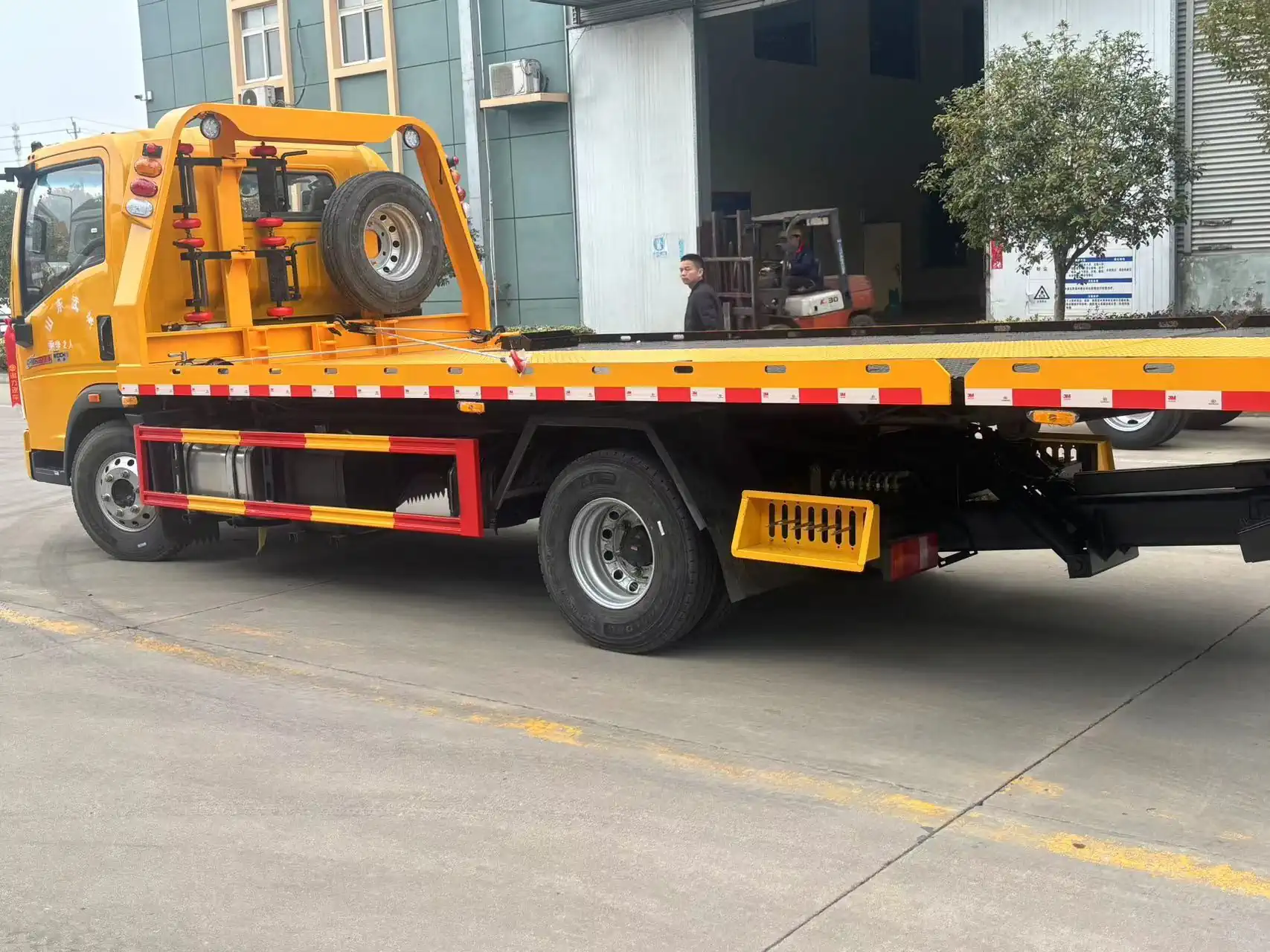

- Tires: 700R16 steel radial
- Steering Wheel: Multifunction
- Horn: Air horn
- Charging Port: USB interface
- Storage: Overhead dual mesh pockets
- Driver’s Seat: Air suspension (main position)
Superstructure
- Platform Type: Heavy-duty flatbed

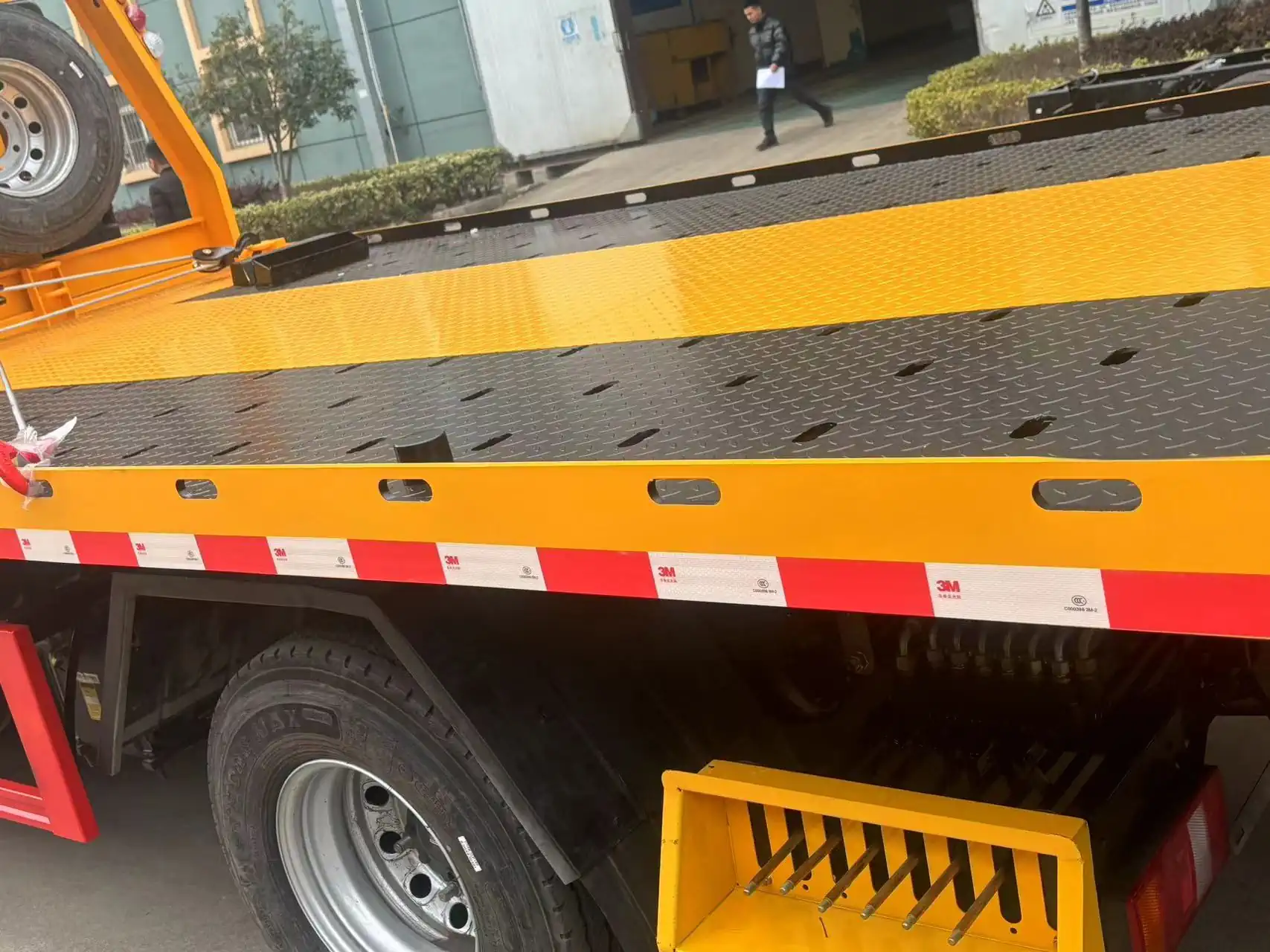

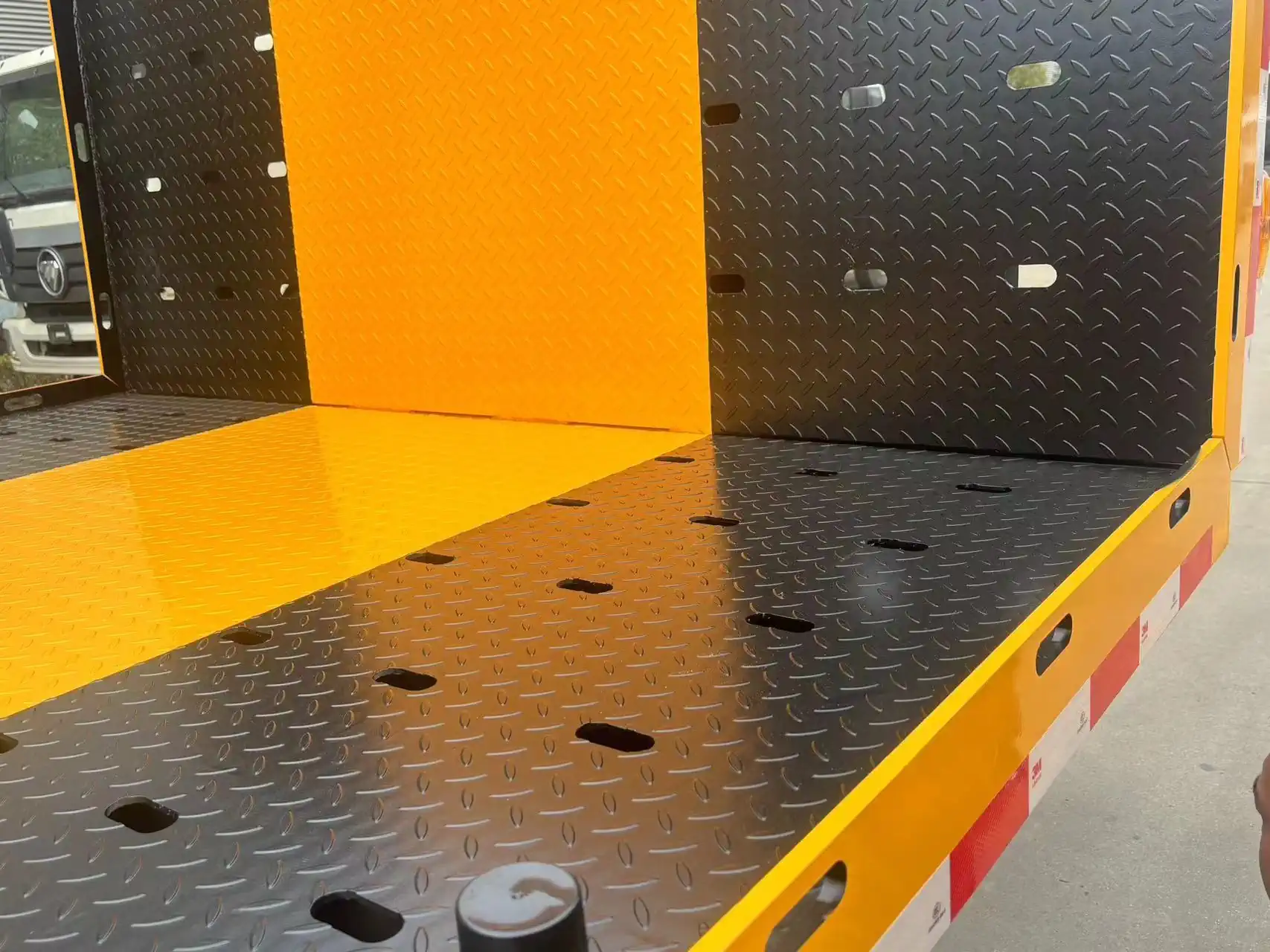

- Deck Material: 5 mm thick anti-slip patterned steel plate

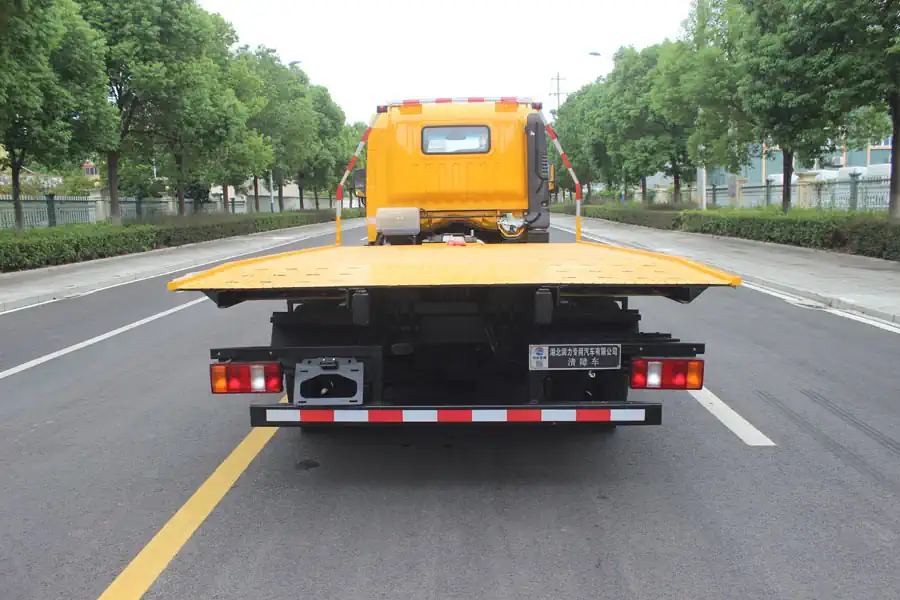

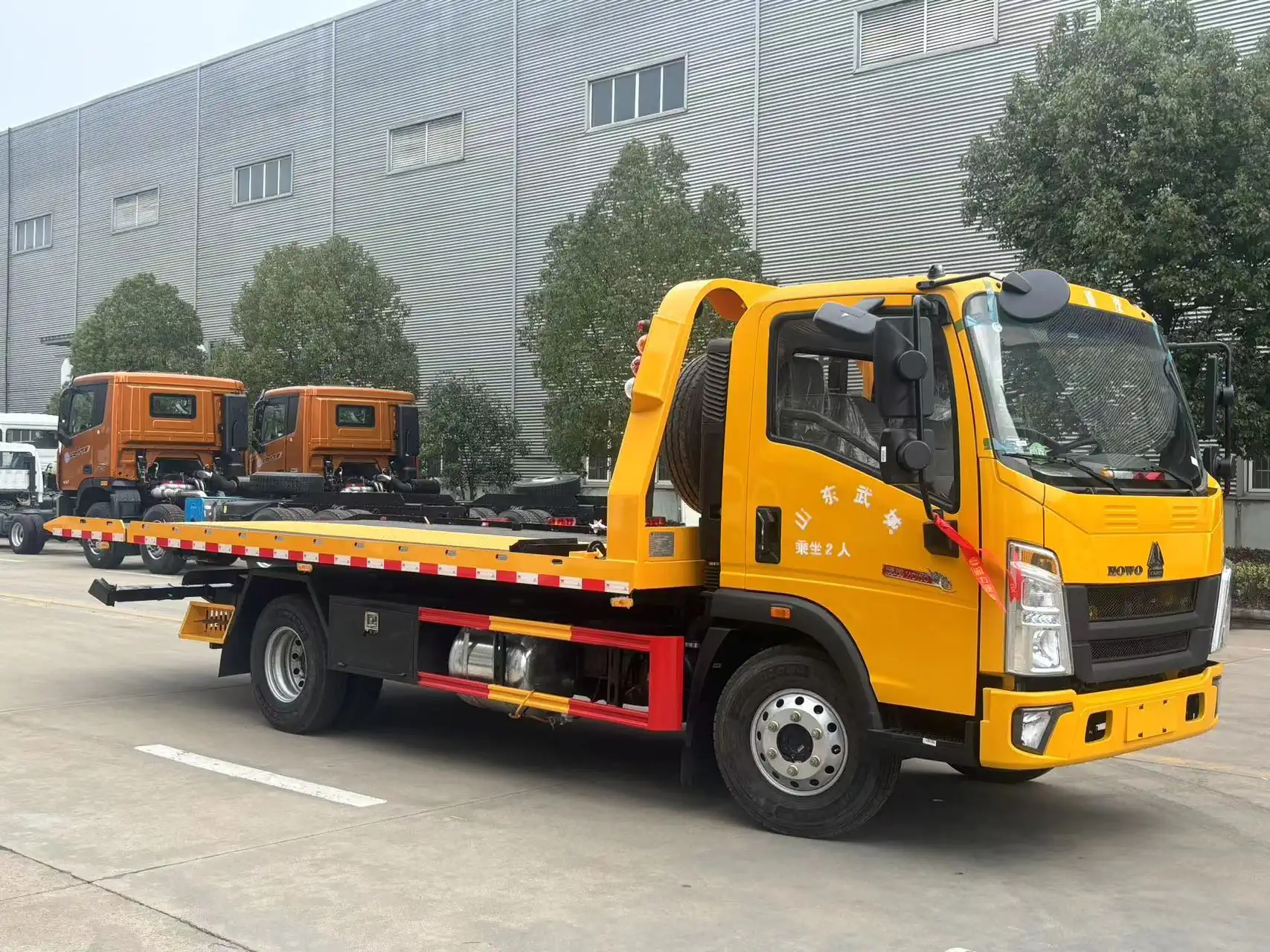

- Platform Dimensions: Length 5.6 m × Width 2.3 m

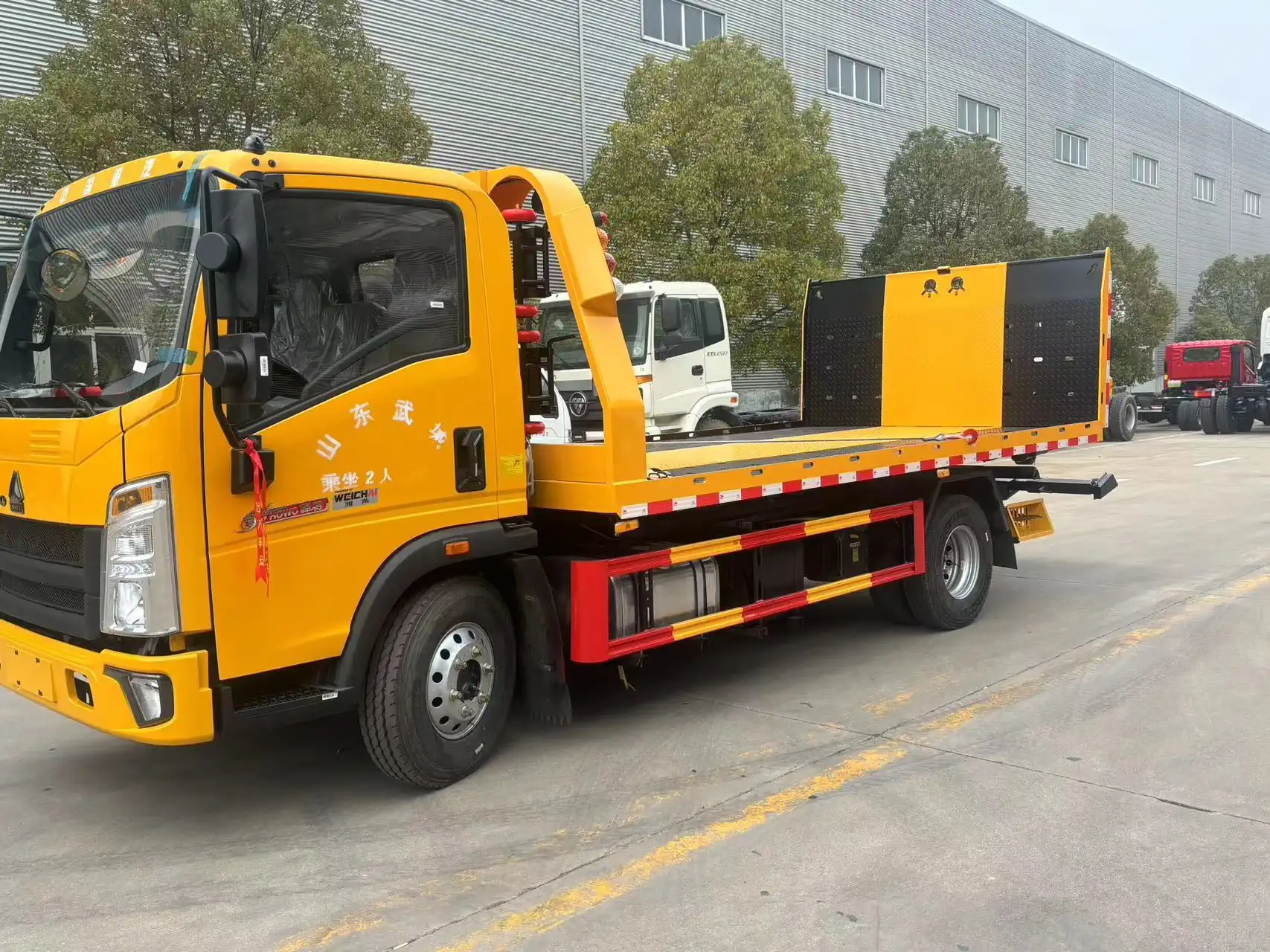

- Tail Section: Hydraulic flip-down
- Main Cylinders: Upgraded, thickened design
- Towing Capacity: 7–8 tons (effortless operation)
- Variants: 5-ton and 7-ton capacity models available
Other Parameters / Configurations
This configuration features enhanced superstructure components (thickened cylinders, reinforced deck) to accommodate higher load ratings while maintaining identical chassis specifications.
