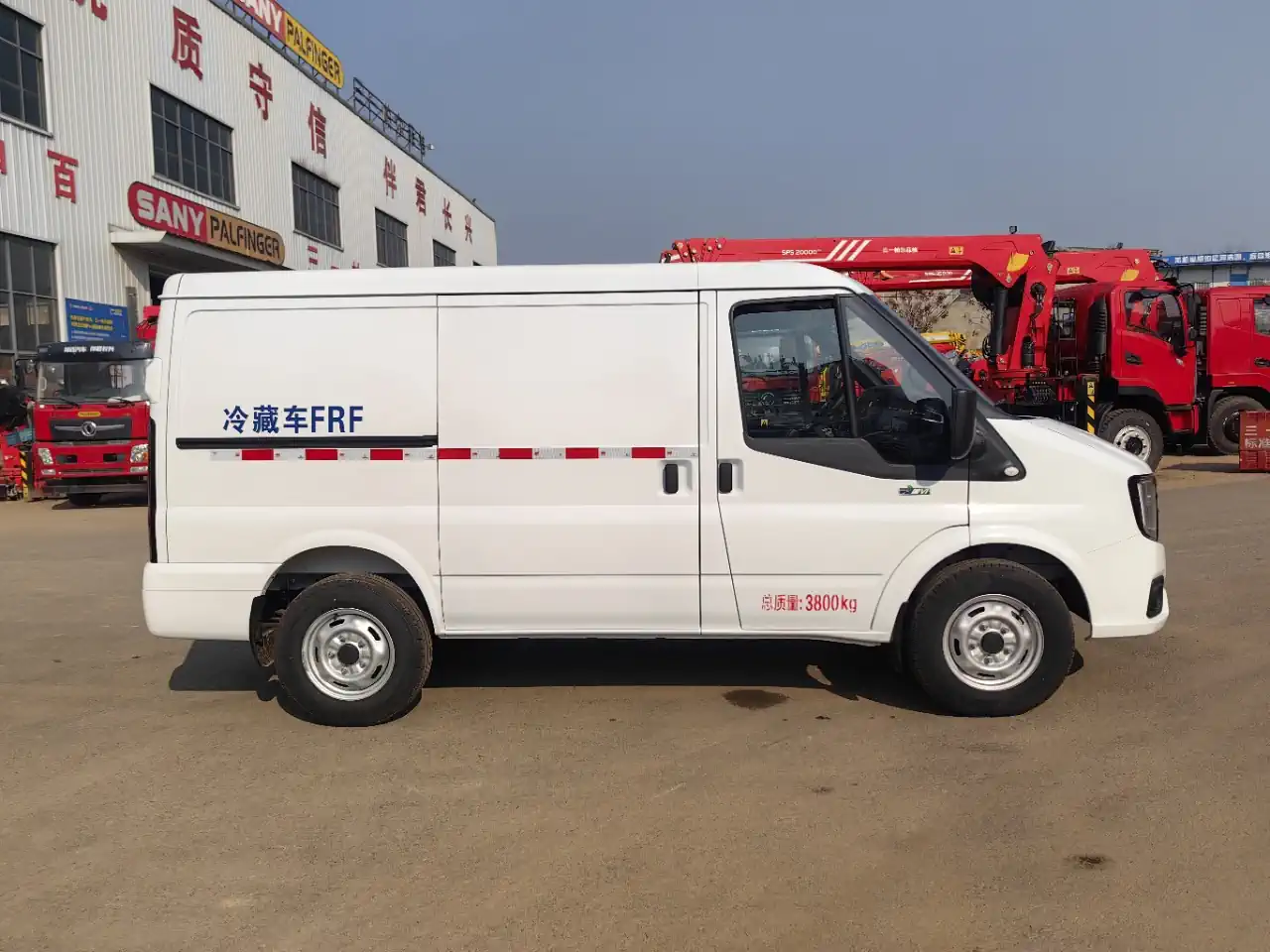

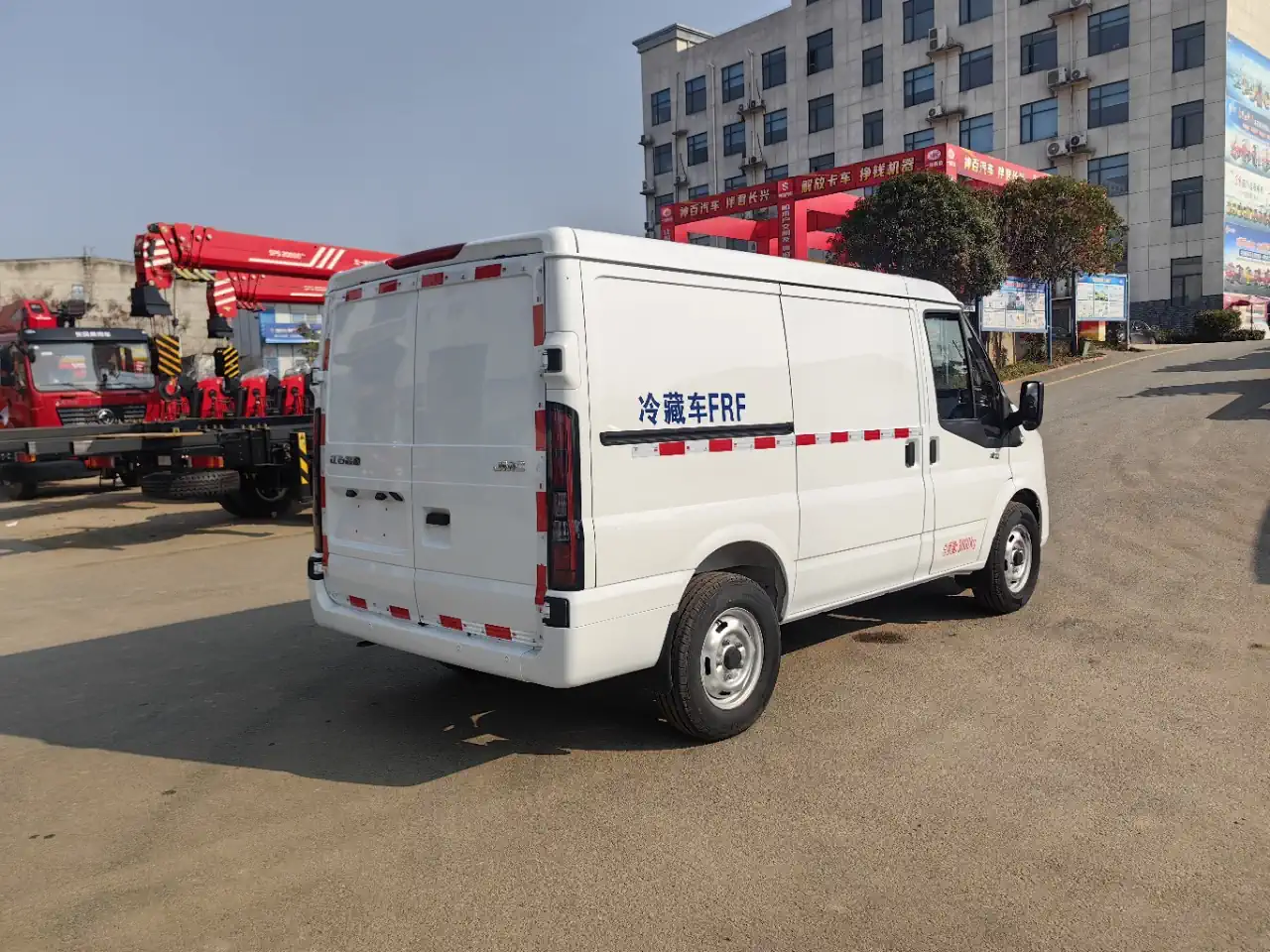

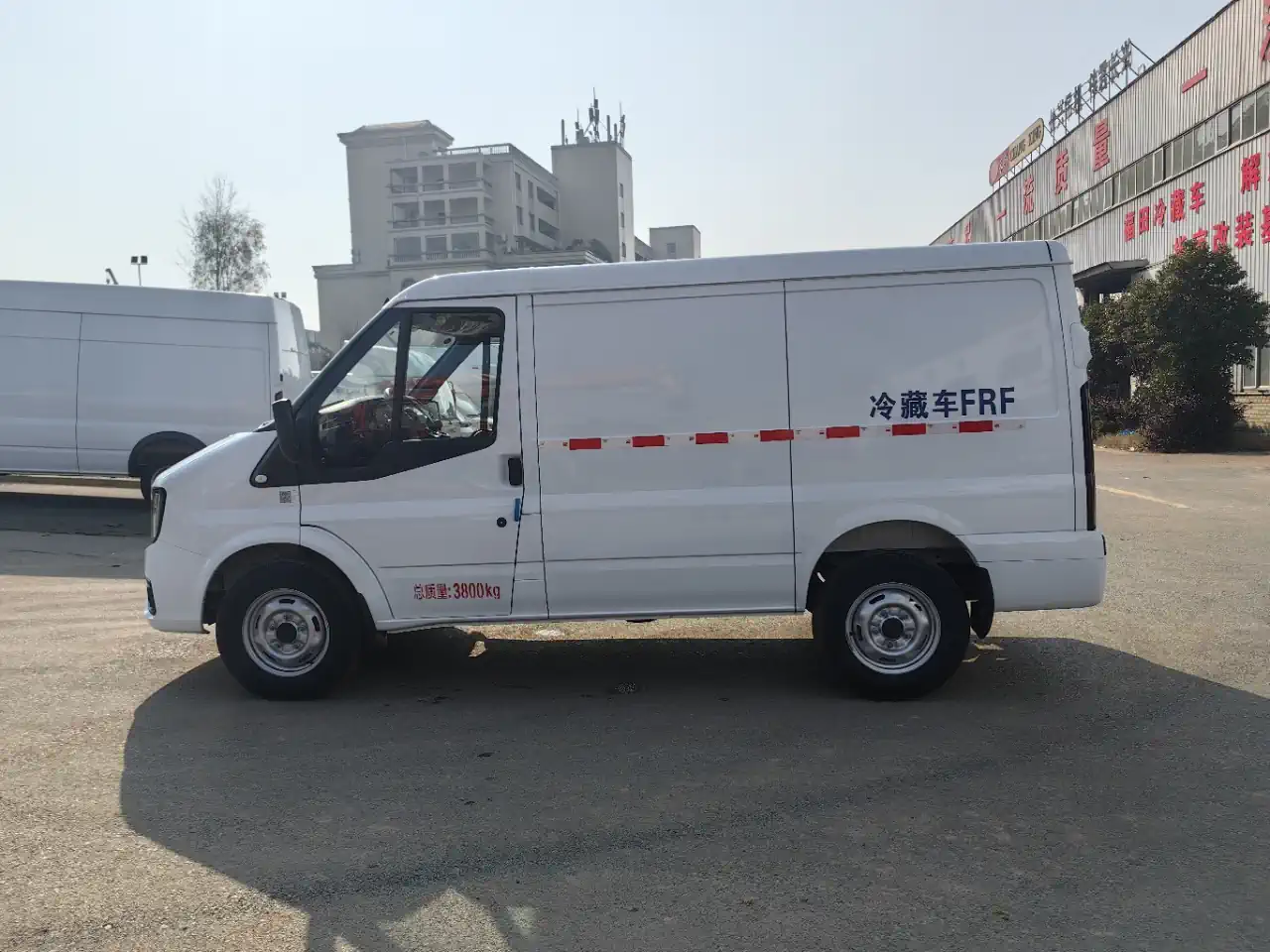

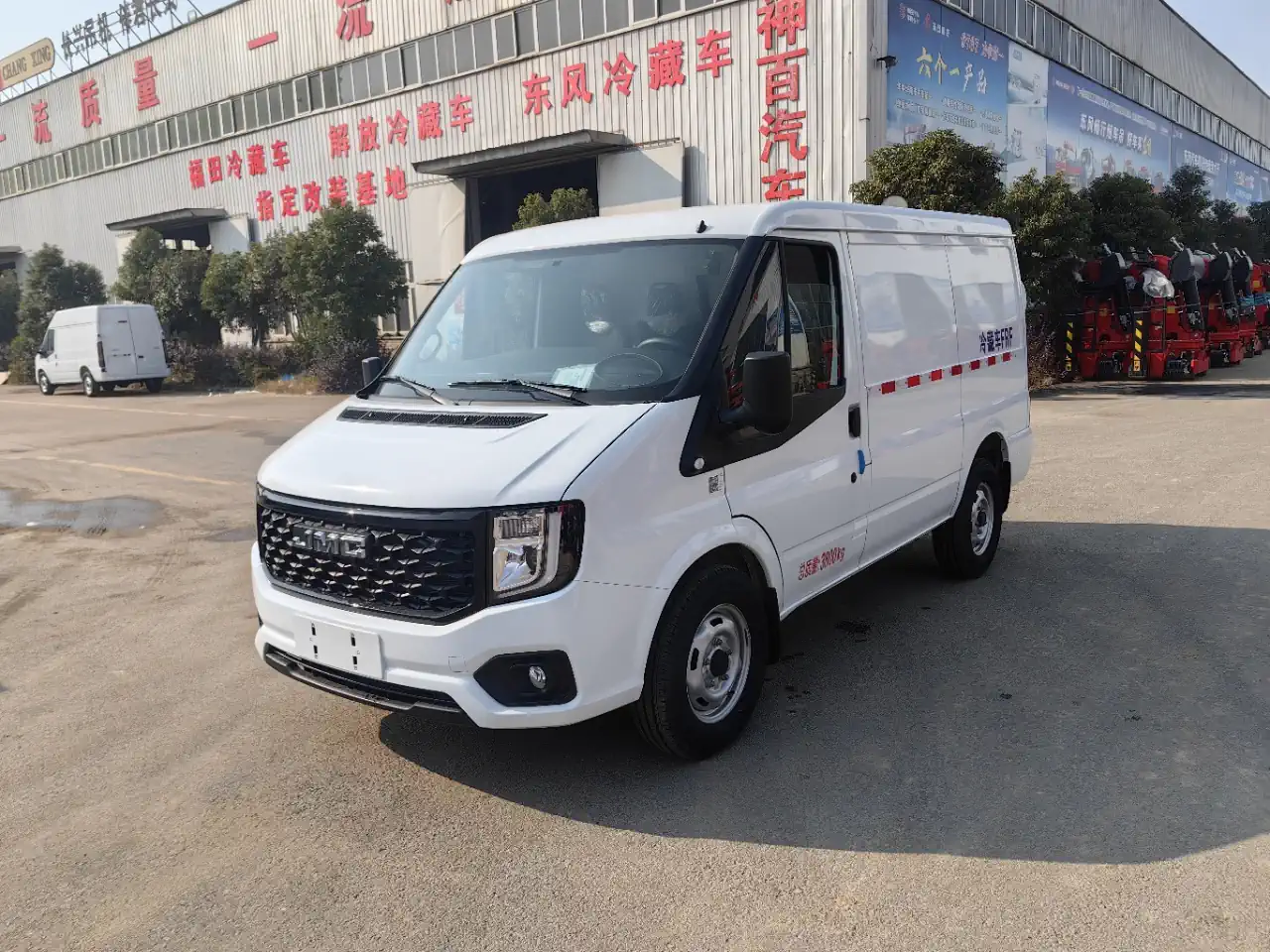

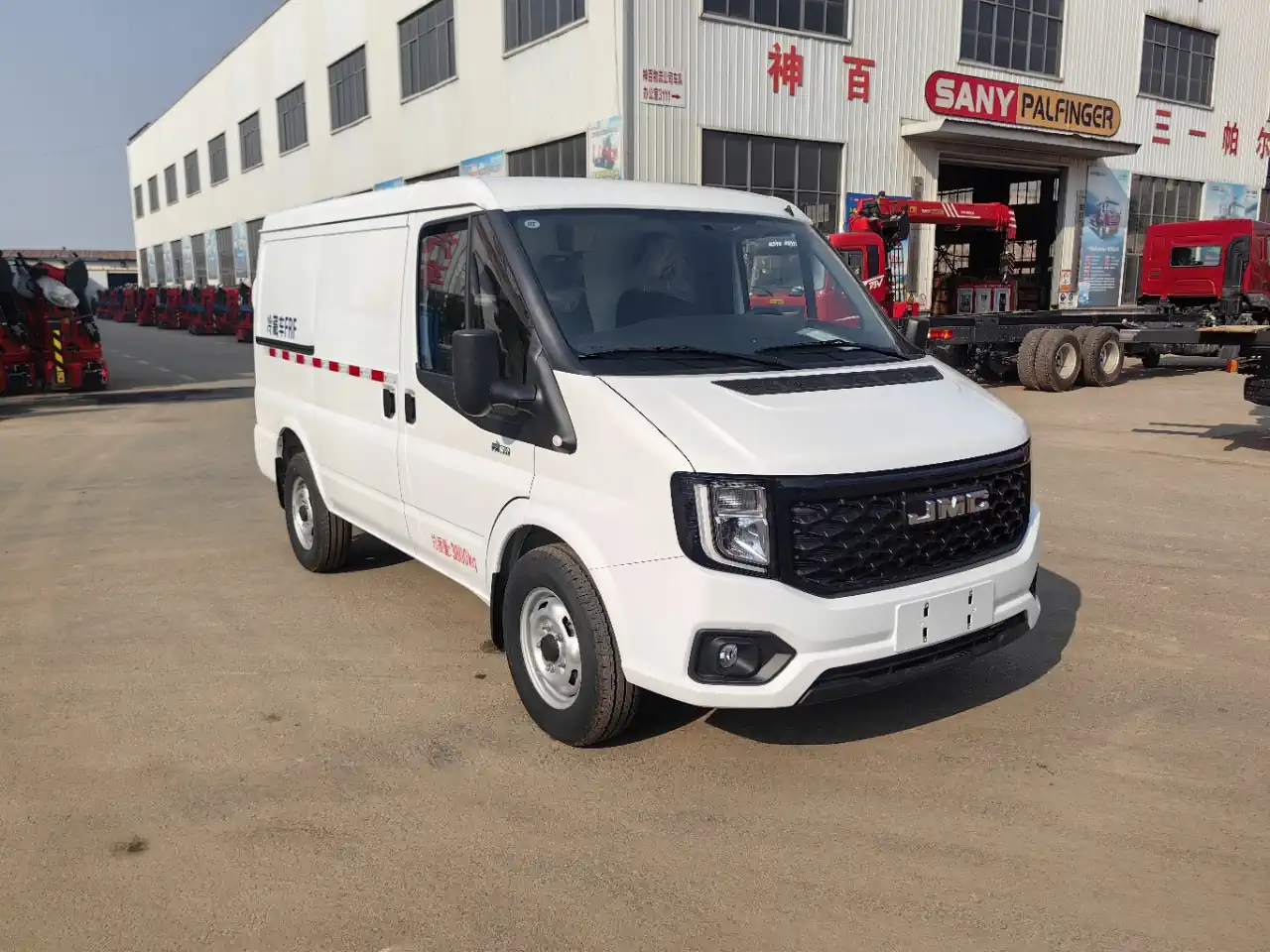

JMC Fushun Short-wheelbase Mid & High Roof Van Refrigerated Truck
This JMC Fushun van refrigerated truck features 3 height options, a 2.0T 145HP engine with 6MT/8AT transmission, -18℃ refrigeration unit and 5cm insulated FRP cargo box, boasting flexible dimension choices for diverse urban cold chain distribution needs.
Category:
Refrigerated Truck
Inquiry
Vehicle Overview
- Model number: ABC5045XLC-L6
- Core positioning: Multi-height optional van refrigerated truck for urban short-distance cold chain logistics, suitable for fresh, frozen and temperature-sensitive goods transportation
- Multiple overall dimensions: 4950×1974×2630mm / 4950×1974×2500mm / 4950×1974×2200mm, adaptable to different clearance and loading demands
- Matching cargo box dimensions: 2200×1530×1570mm / 2200×1530×1400mm / 2200×1530×1200mm, realizing dimension matching for diverse cargo volume
- Wheelbase: 2933mm, ensuring stable driving and reasonable body weight distribution
- Power system: 2.0T turbocharged engine with in-cylinder direct injection technology
- Engine performance: 145HP maximum power, 107KW rated power, 355N·m peak torque, strong power for urban road conditions
- Transmission options: Standard 6MT manual transmission, optional 8AT automatic transmission for easier operation
- Drive type: Front-engine rear-wheel drive, excellent traction and passing performance
- Body structure: Load-bearing body, light and flexible, perfect for narrow urban road driving
Price: 18428 USD/Unit
Chassis Parameters
- Chassis model: JX5045XXYTD-L6
- Wheelbase: 2933mm
- Engine displacement & technology: 2.0T, in-cylinder direct injection
- Engine power & torque: 145HP horsepower, 107KW output, 355N·m maximum torque
- Transmission system: 6MT manual transmission (8AT automatic transmission optional)
- Drive mode: Front-engine rear-wheel drive
- Suspension system: Front MacPherson independent suspension; Rear Hojjiski suspension
- Steering system: Mechanical hydraulic power steering, precise and smooth operation
- Braking system: Four-wheel disc brake, equipped with ABS + EBD/CBC safety systems
- Tire specification: 215/75R16LT, wear-resistant and anti-slip with reliable road grip
Superstructure
Cargo Box Configuration

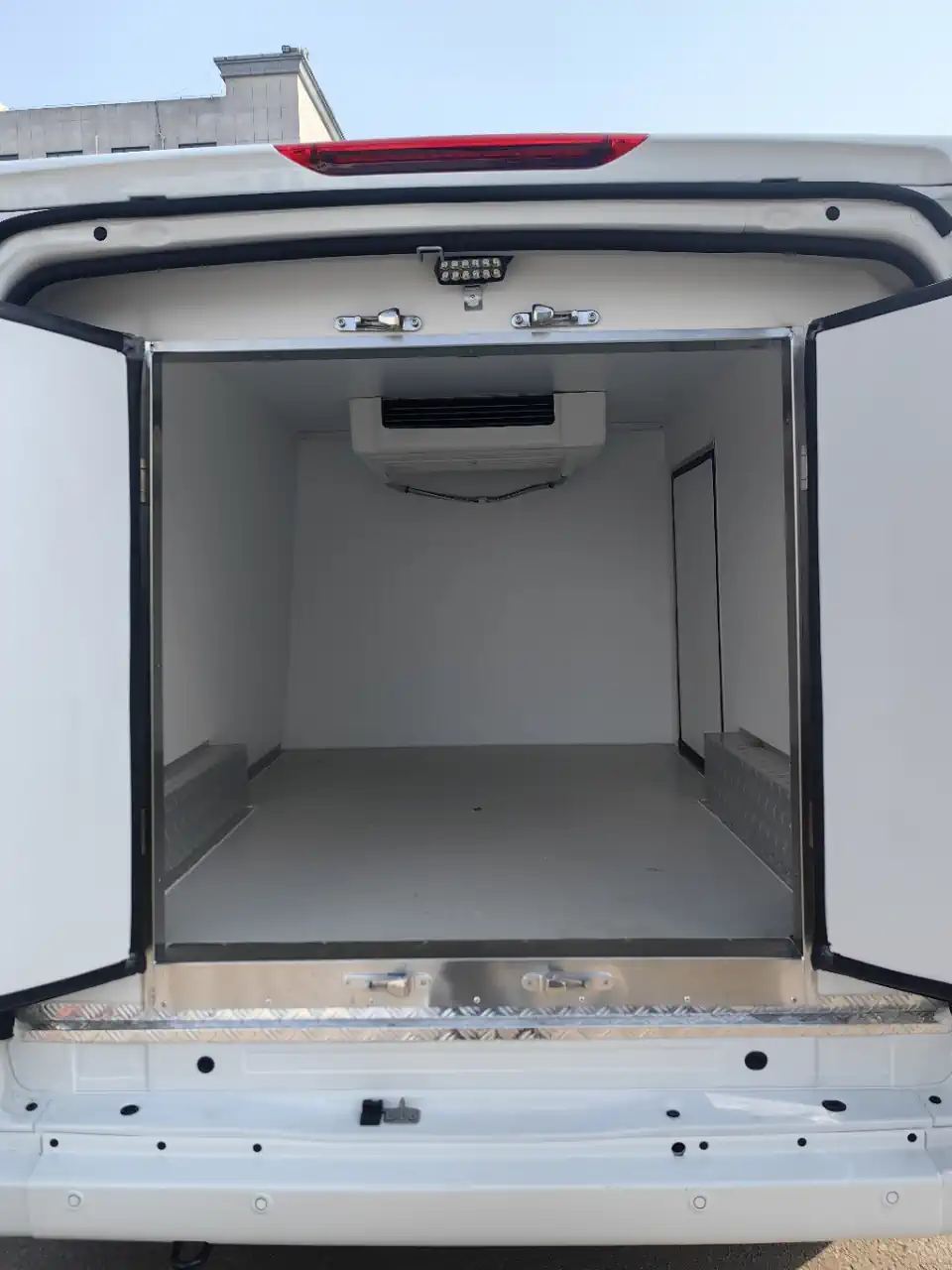

- Panel material: High-strength FRP panels for inner and outer sides; 5cm thick high-density insulation board in the middle, excellent thermal insulation and heat preservation
- Floor design: Patterned FRP floor, anti-slip, wear-resistant and easy to clean
- Door & hardware: Stainless steel door frame and lock components, corrosion-resistant and durable for long-term use

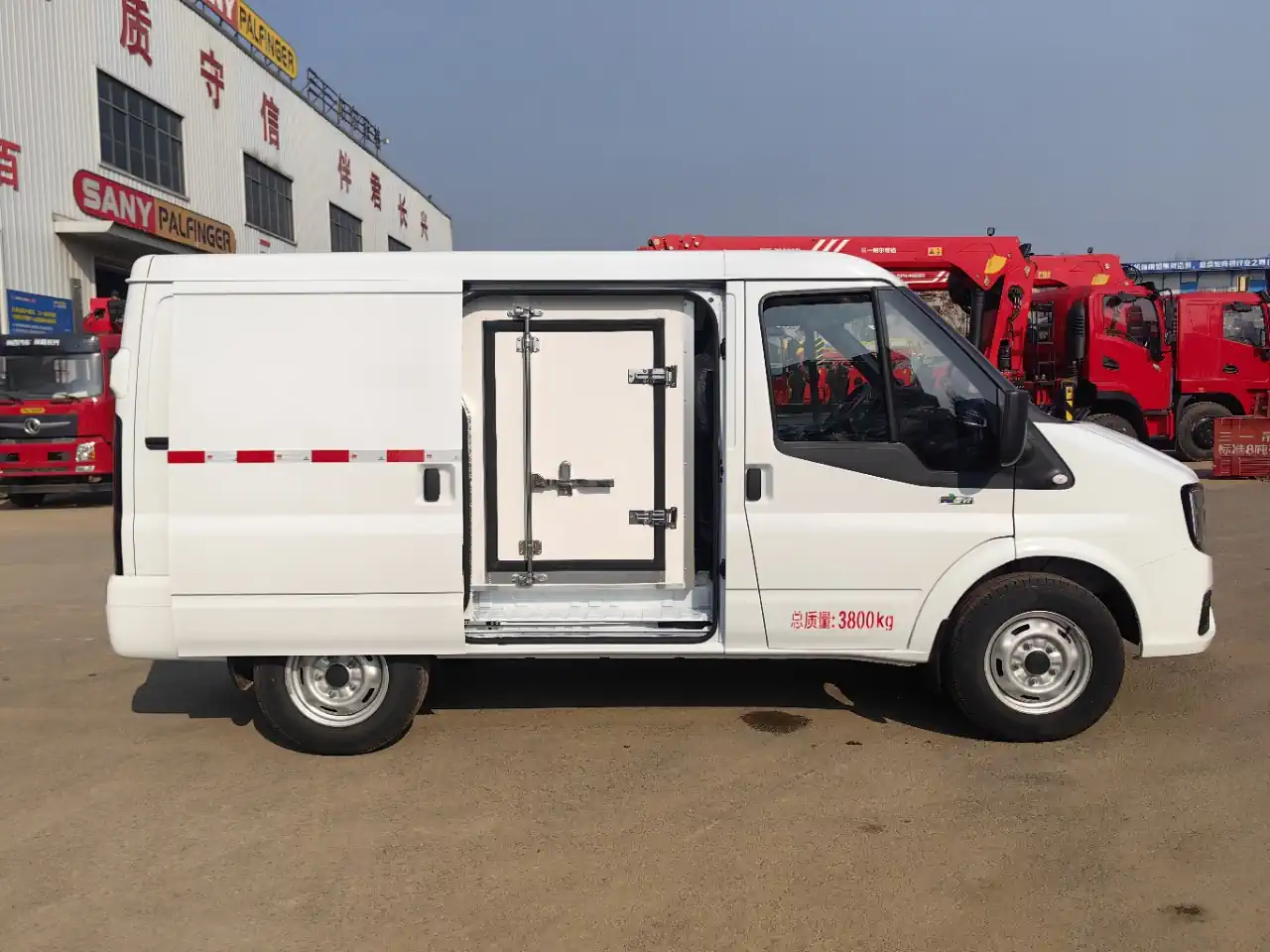

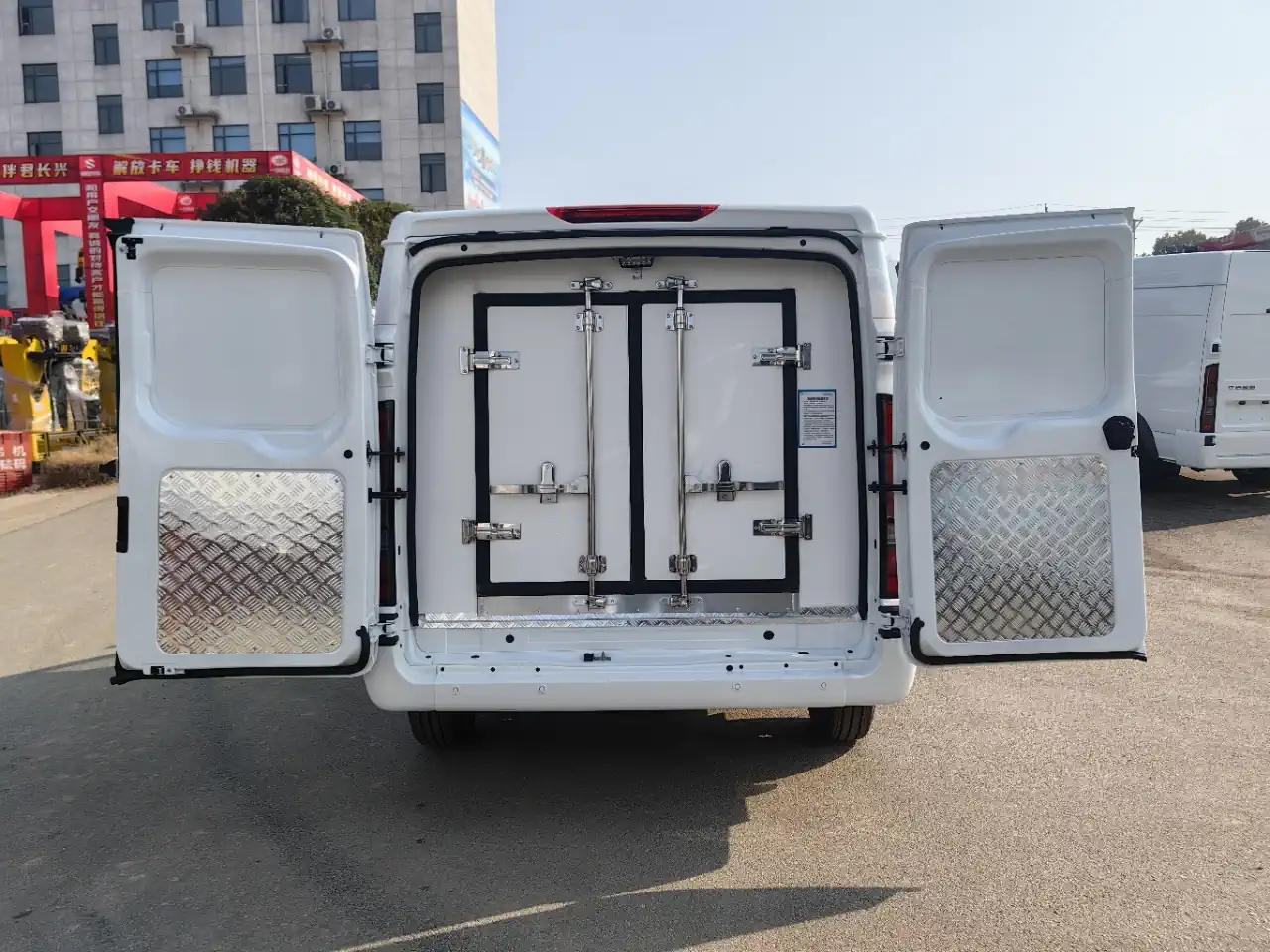

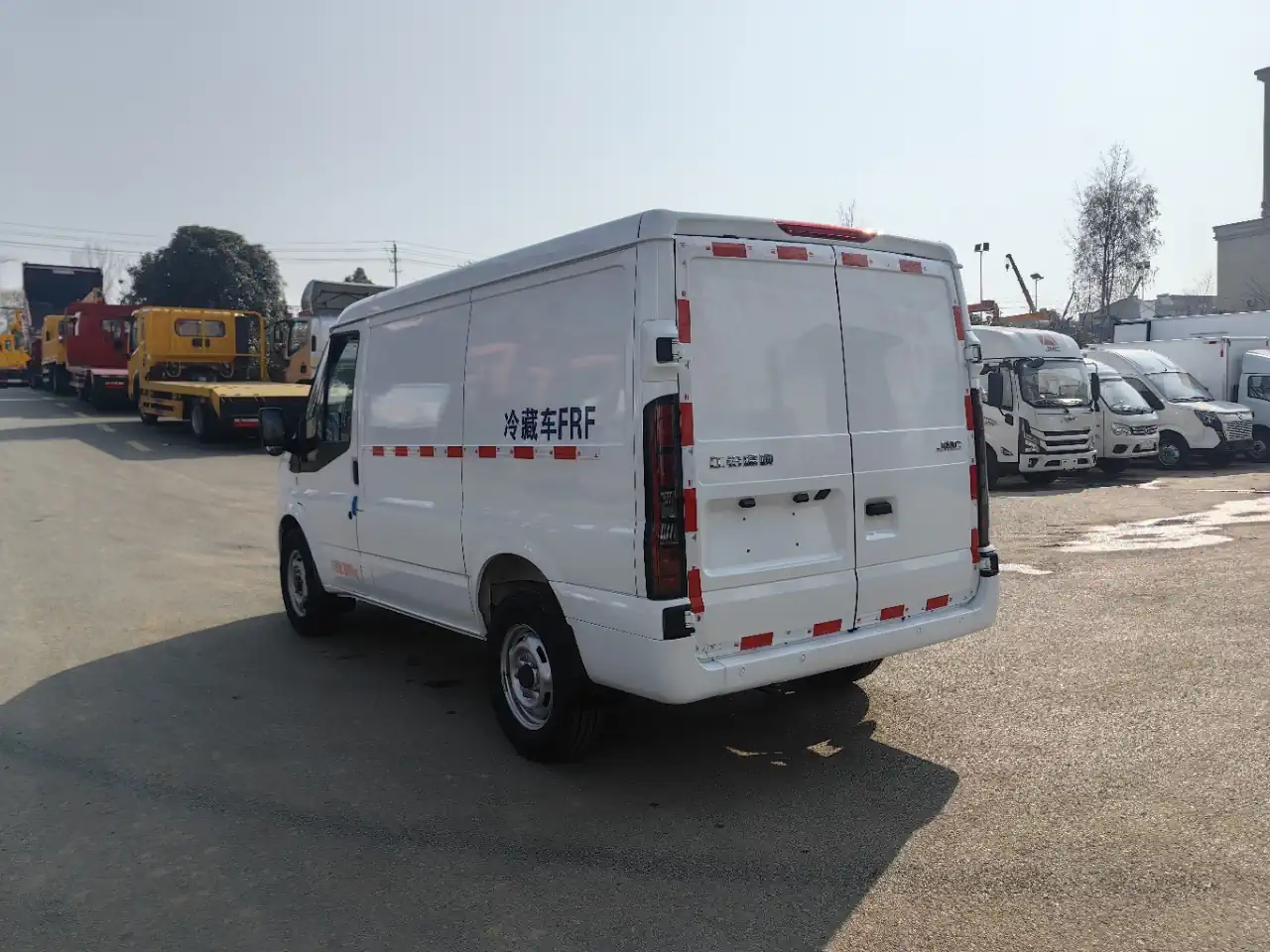

- Door options: Standard double rear doors; optional single side door for flexible loading and unloading from multiple directions
- Multiple internal dimensions: 2200×1530×1570mm / 2200×1530×1400mm / 2200×1530×1200mm, matching vehicle height for customized loading
Refrigeration System

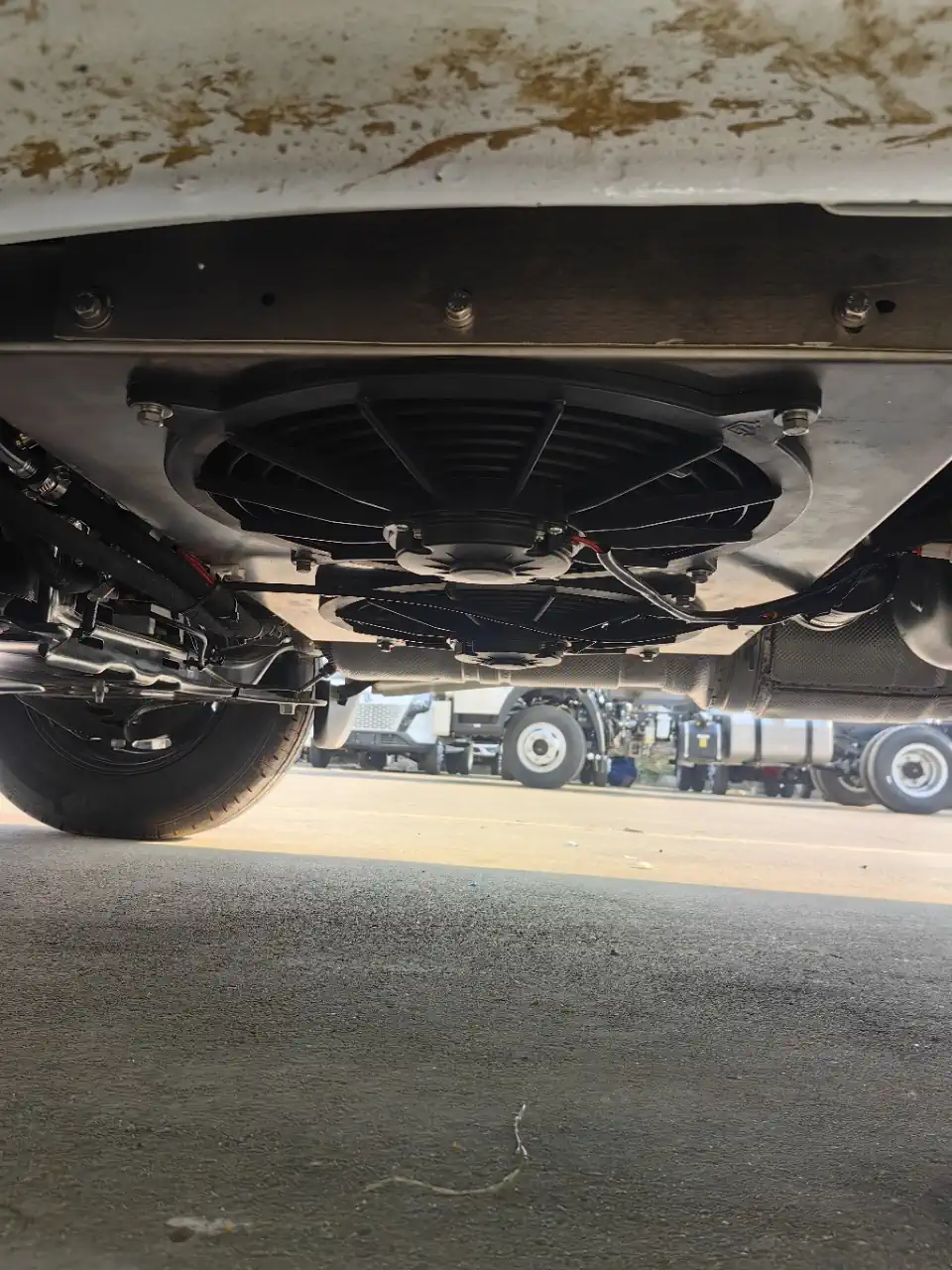

- Refrigeration unit: High-efficiency domestic refrigeration unit
- Temperature control: Stable cooling down to -18℃, meeting the low-temperature storage requirements of frozen food and other sensitive goods
- Cooling performance: Uniform temperature distribution in the box, reliable refrigeration effect for whole-journey cold chain transportation
Other Parameters / Configurations

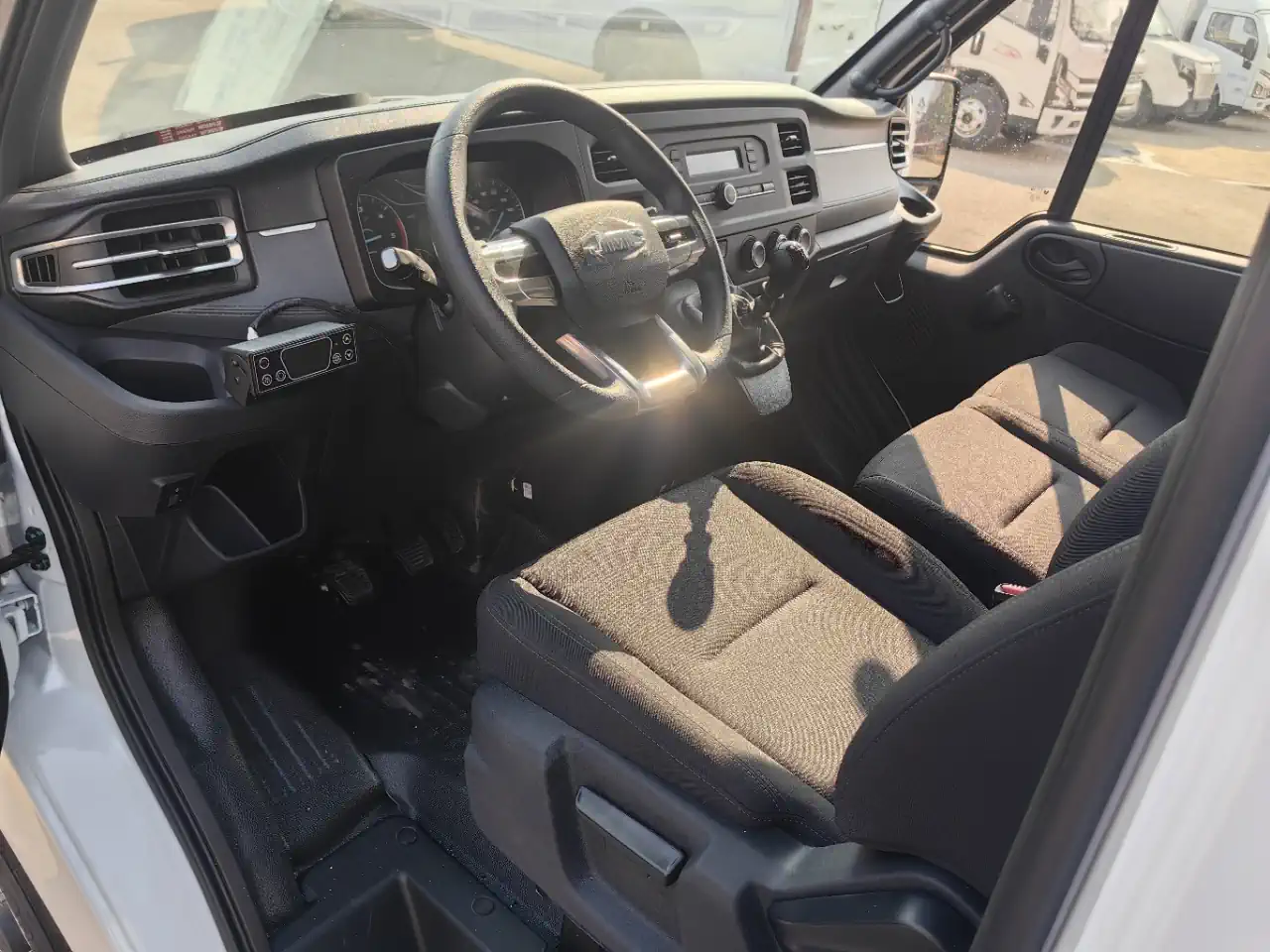

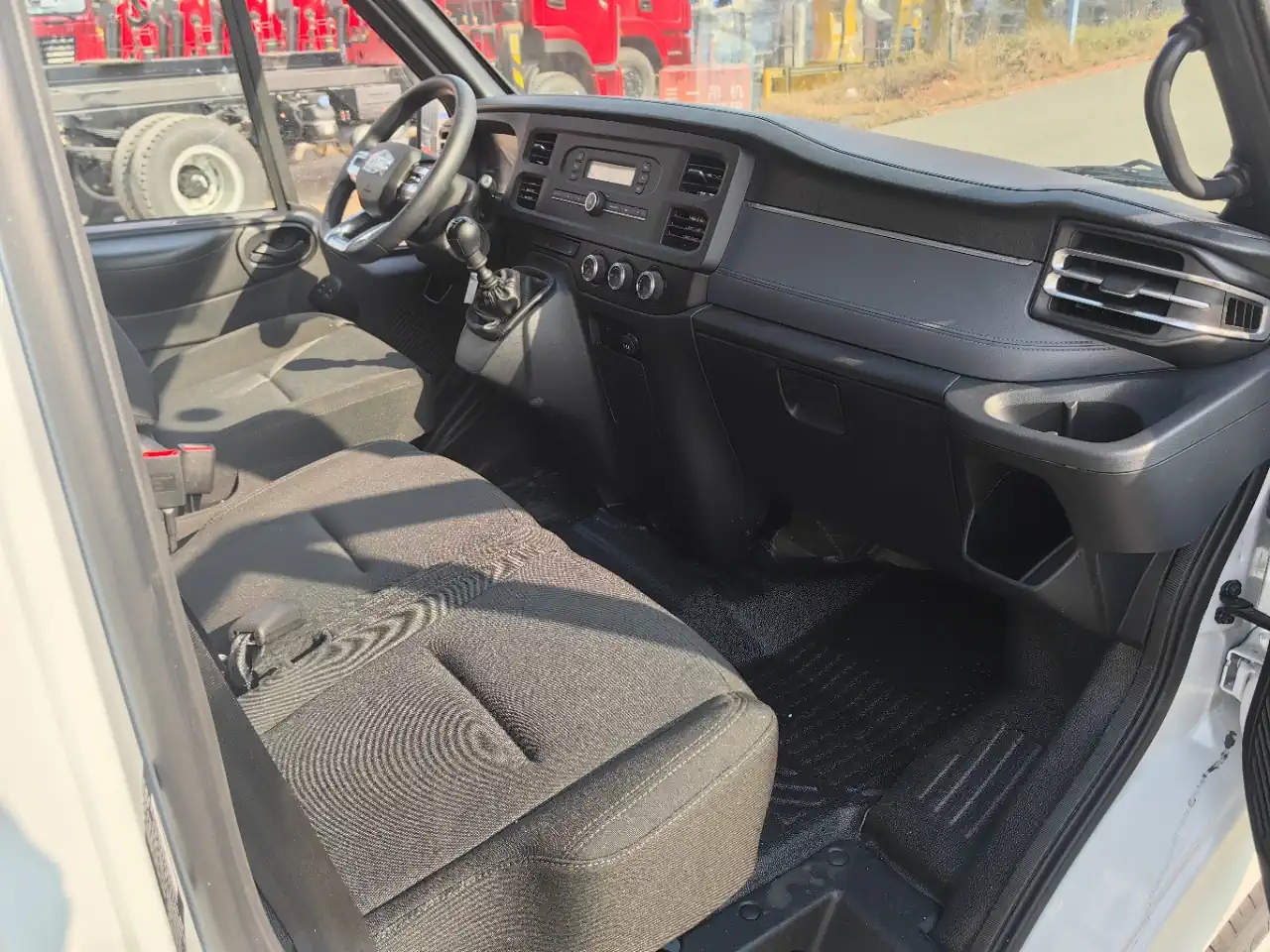

- Cab interior equipment: Multi-function steering wheel, convenient for operating vehicle functions without taking hands off the wheel
- Safety configuration: Driver-side safety airbag, providing passive safety protection for the driver
- Parking assistance: Rear parking radar, effectively reducing reversing blind spots and improving parking safety in narrow urban spaces
- Body adaptability: 3 height options to adapt to different road clearances, warehouses and delivery scenarios
- Customization service: Support for optional single side door according to actual transportation and loading needs
- Structural advantage: Integral load-bearing body with compact size, easy to maneuver in urban traffic and narrow alleys
